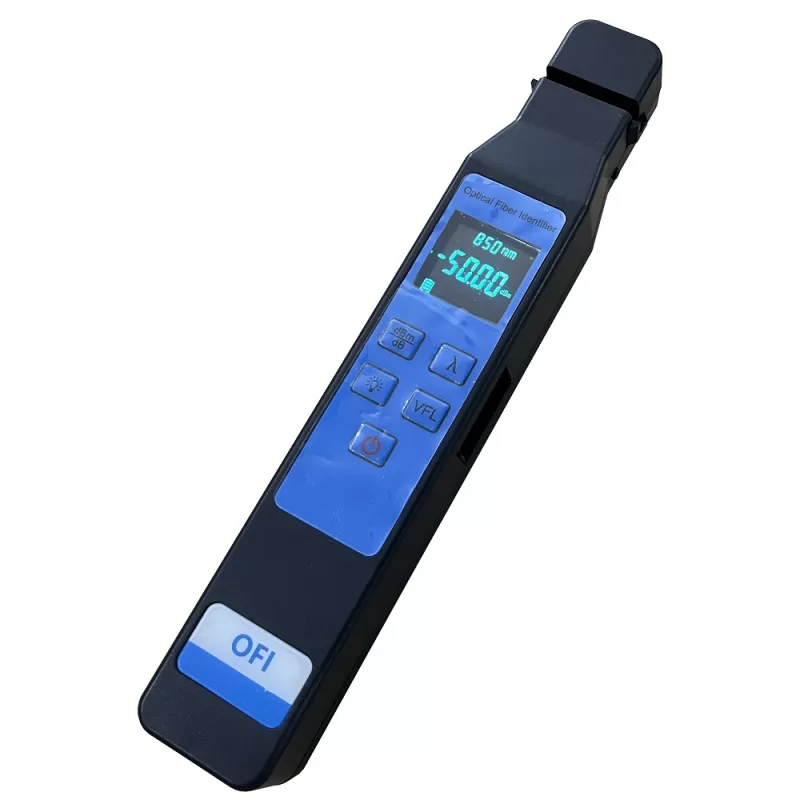

Visual fault locator Optical Fiber Identifier with power meter and VFL

Optical fiber identifiers (OFI) are rugged, easy-to-use test instruments that detect the presence of signals on optical fibers. An OFI is an important tool for field technicians – assuring that live fibers are not disconnected and providing the ability to trace fibers from end to end.OFI are simply clamped onto a fiber, where they induce a safe macro-bend and allow a small amount of light to escape. Units use this light to detect the presence of network traffic, test tones or CW signals and indicate the direction of the signal.

Wirenet offers several OFI in order to meet the needs of every customer. Our newest OFI are some of the most sensitive units on the market, making it the ideal choice for detecting any type of single-mode fiber – including bend insensitive SM fibers.

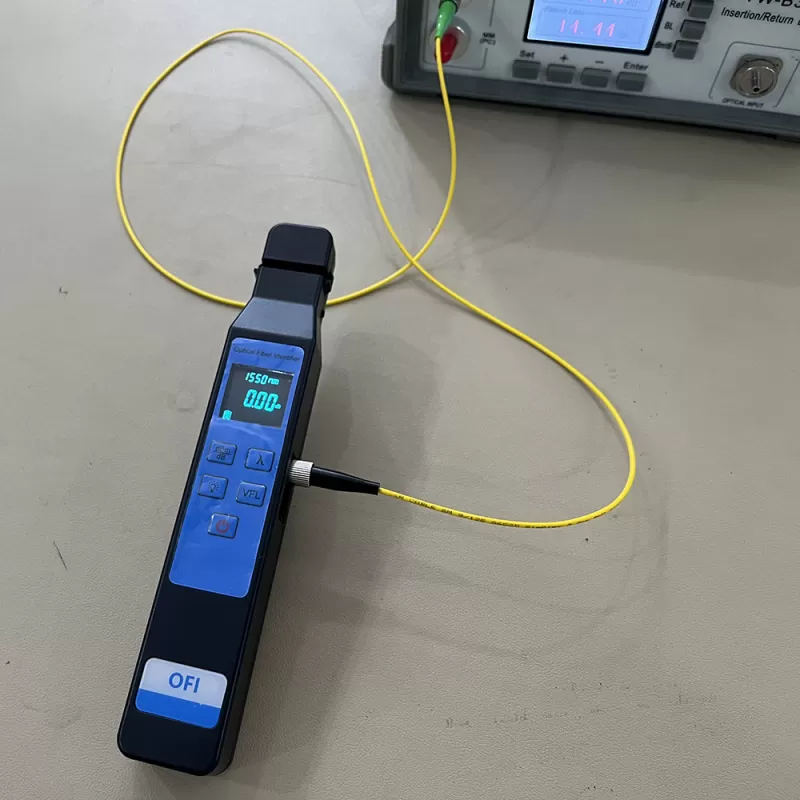

OPM

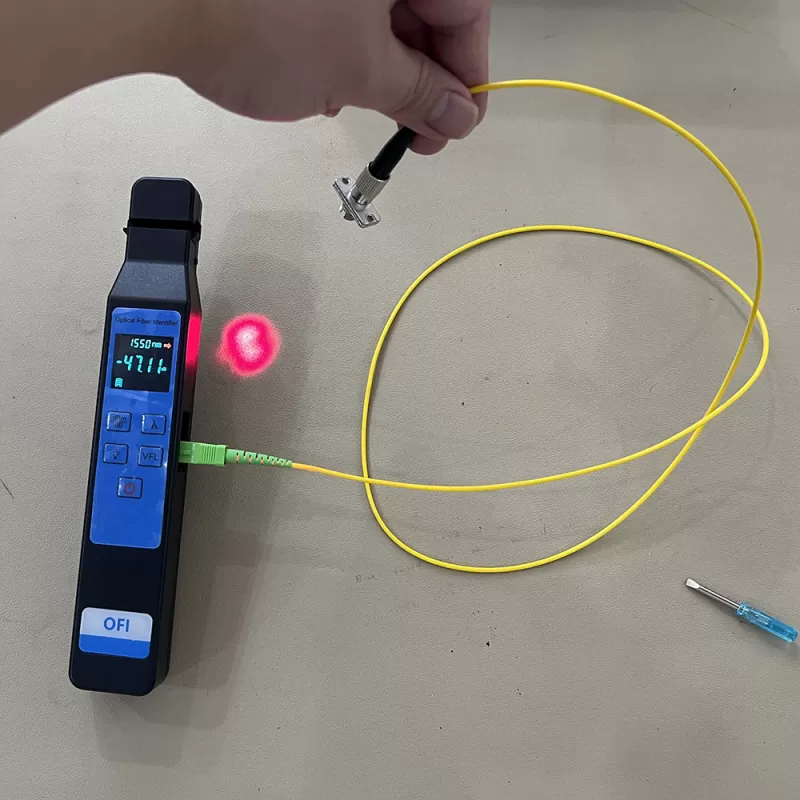

VFL

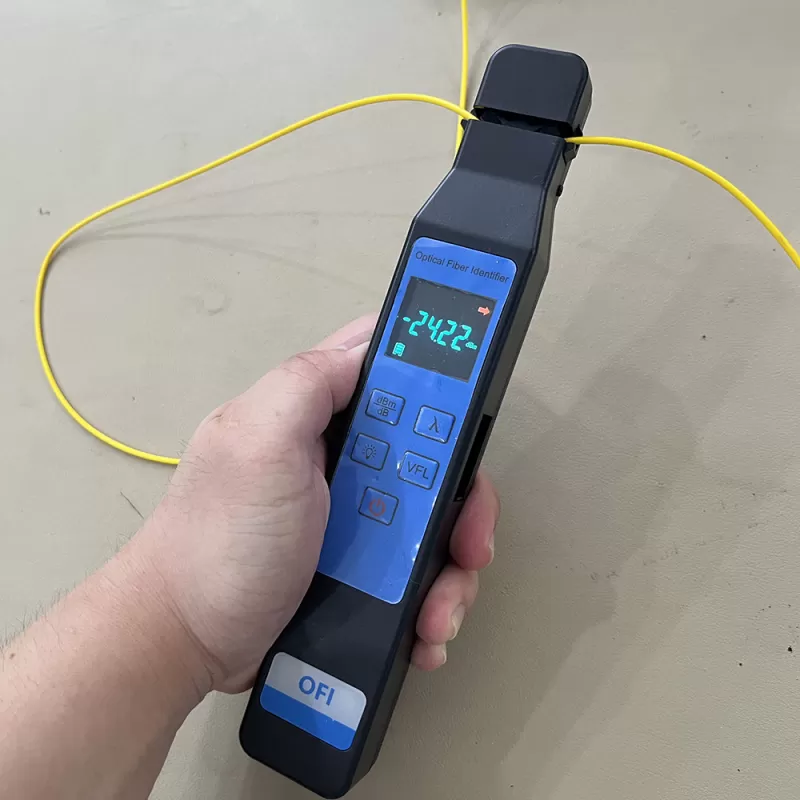

Indicate the signal directions in fiber

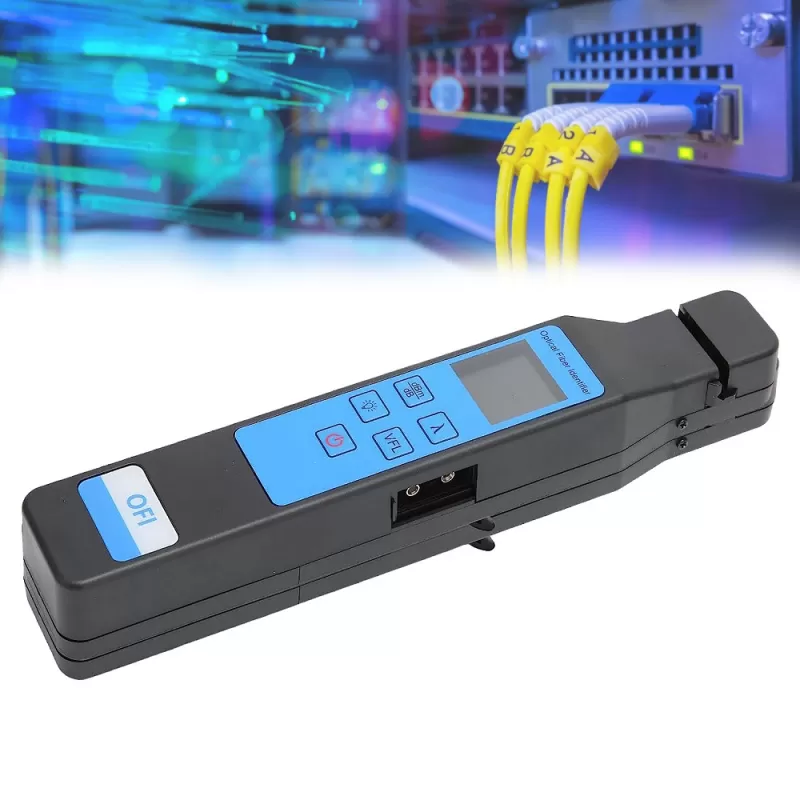

Optic fiber identifier module

【CONNECTOR TYPE】:

        Multifunctional 800nm-1700nm wavelength fiber identifier adopts online macrobending technology for non-destructive testing, which can measure signal direction and power to avoid line interruption caused by misoperation.

【MULTI-FUNCTION】:

         Built-in 10mW VFL function LED fiber optic identifier; OPM, metal bracket, no need to replace the adapter, low battery monitoring function, tone recognition and other functions.

【QUICK DETECTION】:

        The portable optical fiber identifier can detect the optical signal in the single tone signal of fixed load 270Hz, 1KHz and 2KHz, identify the specific optical fiber, and can quickly find the required optical fiber.

【STRONG PRACTICABILITY】:

        Fiber marker is an important tool for fiber maintenance. For non-destructive fiber identification projects. It has the functions of visual fault location module, fault location and electric energy meter.
