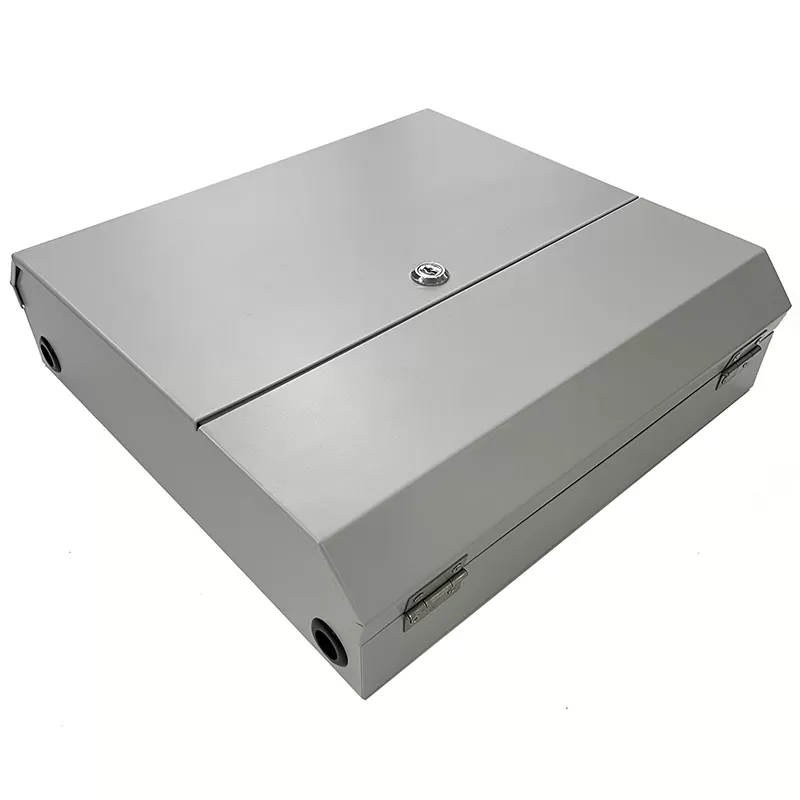

indoor Fiber optic wall mount patch panel

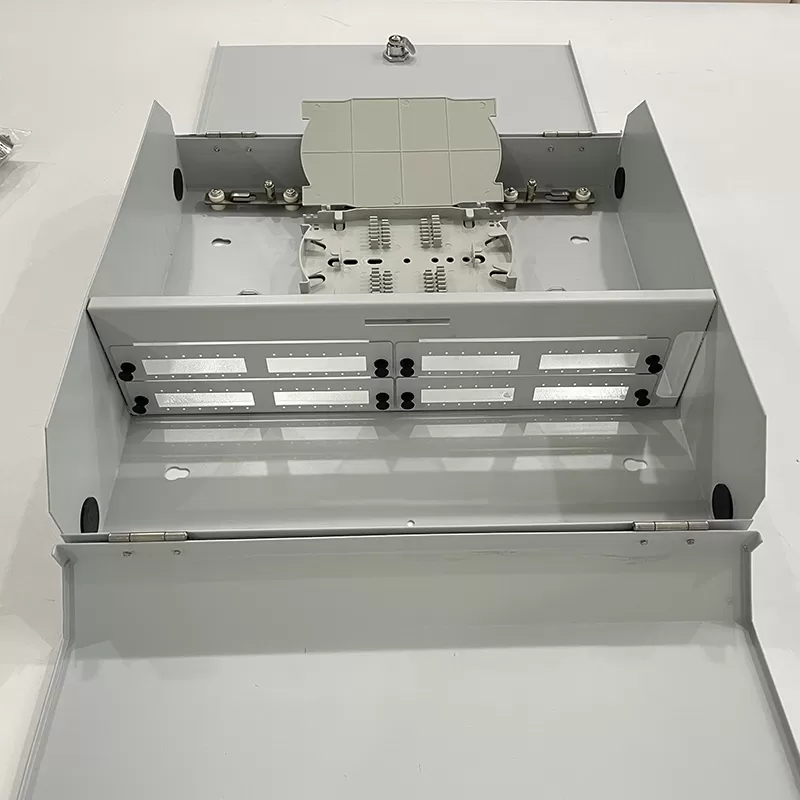

       Indoor Wall Mounted Fiber Optic Patch Panel is mainly used for connecting the indoor/outdoor optical cables, optical patch cords and optical pigtails.

1. Types:

* indoor wall-mount type

2. Properties:

* Suitable for the protective connection between cables and pigtails

* Suitable for the connection between optical cables and optical communication device

* unique structure, easy installation, for indoor use

3. Classification: Wall Mount. Suitable for FC adapter,ST adapter,SC adapter, LC adapter etc.

* capacity: 12,24,32,48,64,72,96 splices

* 19 inches; 1U for 12 splices, 24 splices,2U installation for 32 splices, 48 splices, and 3U for 64, 72 & 96 splices.

* Adapters installed: FC adapter ,ST adapter,SC adapter, LC adapter etc

* Suitable for ribbon and bunchy fiber cable

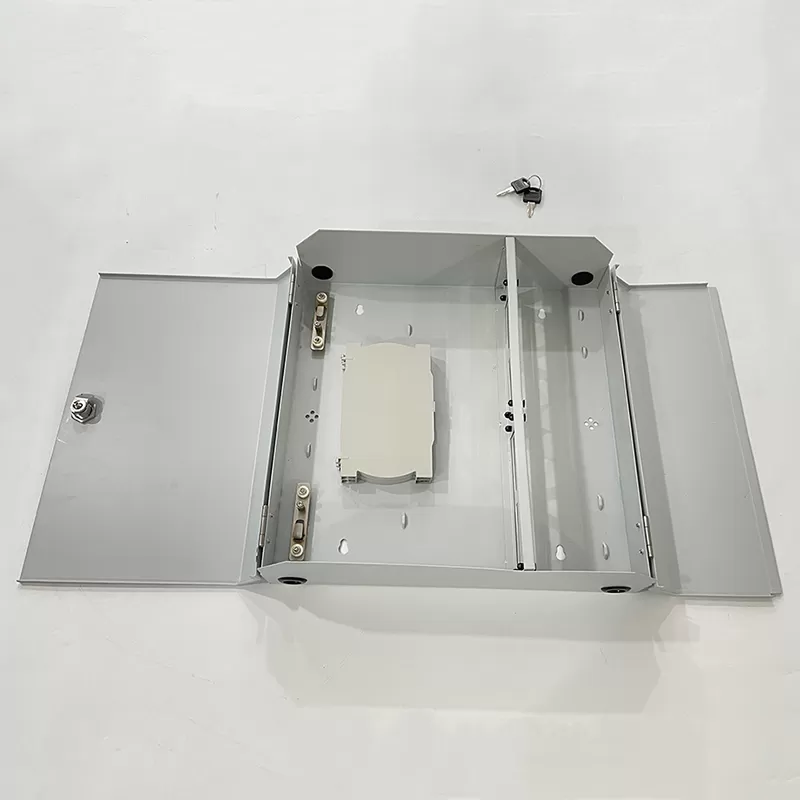

4. Components:  Cover, inner components, fiber connecting protector Inner components

    a. Cover: the cover should be easily opened for easy installation; it should be provided with an outlet device for fiber metal high voltage protective earthing;

     b. Inner components as follows:

* Bracket: supporting the inner structure.

* Fiber Optic Splice Tray: storing fiber connectors (together with the protective components) and the spare fibers, with the length being about no less than 1.6m; the curve radius of the coiled spare fiber should be no less than 37.5mm; makes that are easily recognizable should be provided for reconnection of fibers; should have adequate room for convenient operation;

* Fixing Device: used for the fixation of fiber protective tubes and the fixation of pigtails.

5. Heat shrink protective sleeves are used to protect fiber connectors.

6. Material: All components of the box should be made of materials which are of excellent anti-corrosion performance, if not, then it should be static plastic sprayed; the physical and chemical capabilities of the material should be stable and should be compatible.

 * The melting temperature for the material used for the heat shrinkable protective sleeves and the stuffing should be no less than 120°C, the intenerate temperature should be higher than 90°C, and could be used under -25 - 40°C;

* 4.2 All material should be innocuous, none-corrosion, no side effects to human being or other equipments.

7. Features and advantages:

* Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite and easy for operation.

* The box are Rack Mounted, which is convenient to install and dismantle;

* The splice tray could be piled one upon another, flexible to turn;

* The curve radius of the coiled spear fibers should be guaranteed to be over 37.5mm in the splice tray;

* The box is of unique structure, reasonable layout, and has adequate room for operation;

* Adjustable clamp seal ring and reinforce configuration, which could adjust different sizes of cables flexibly to make sure the cables are clamp tightly;

* The indoor type is of excellent seal performance, which could prevent water from entering effectively;
