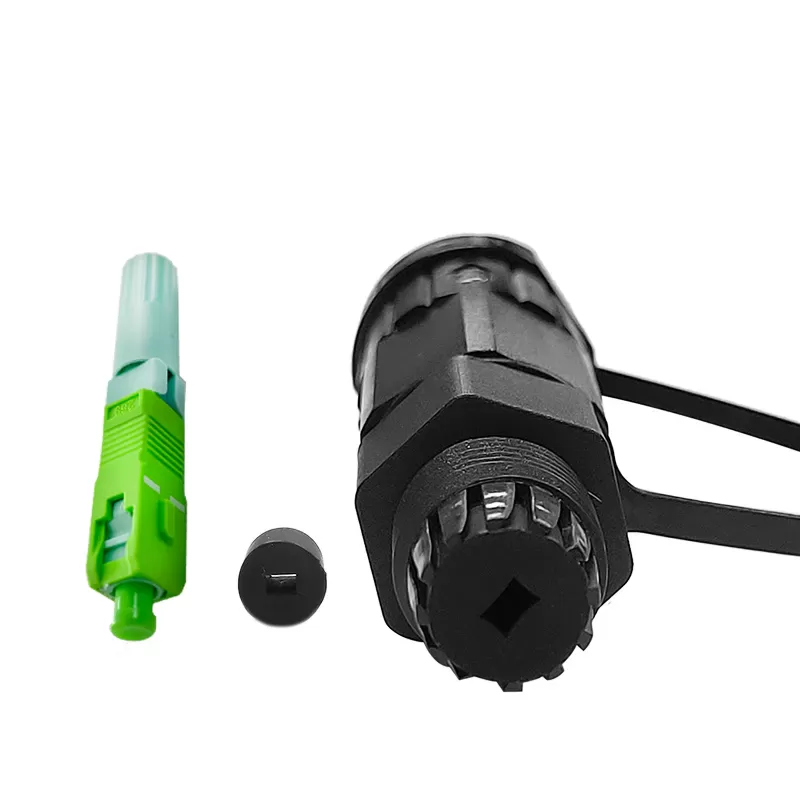

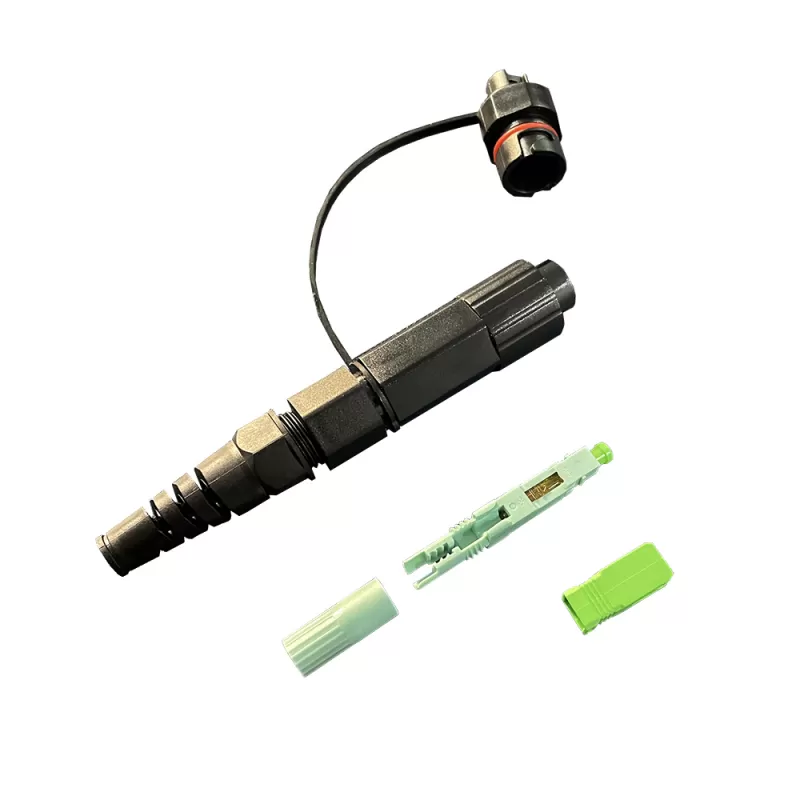

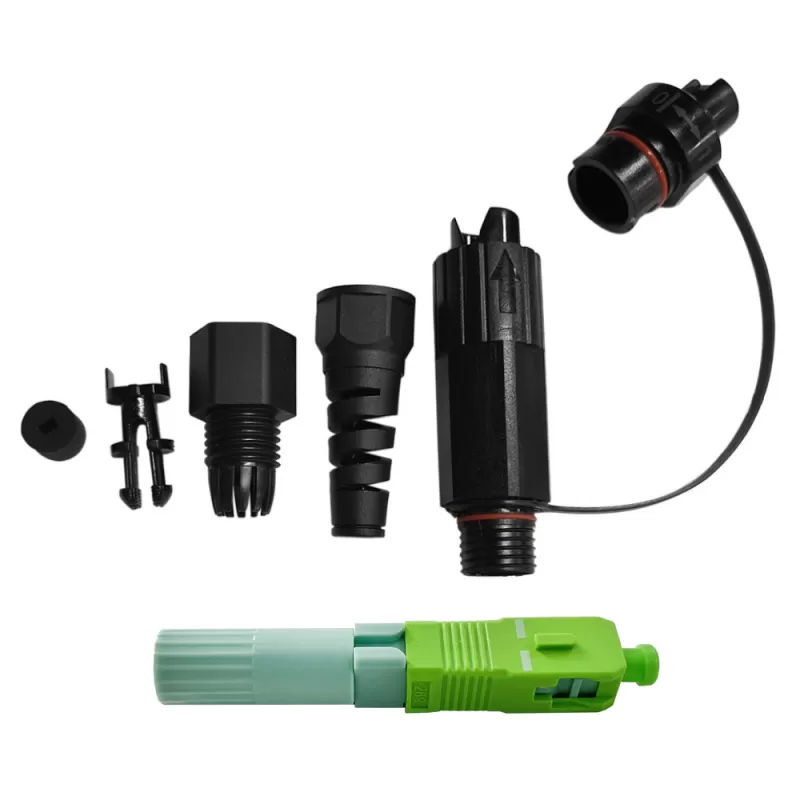

SC Round Cable Waterproof Fast Connector Field Assembly Reinforced FTTH Fiber Optic Connector

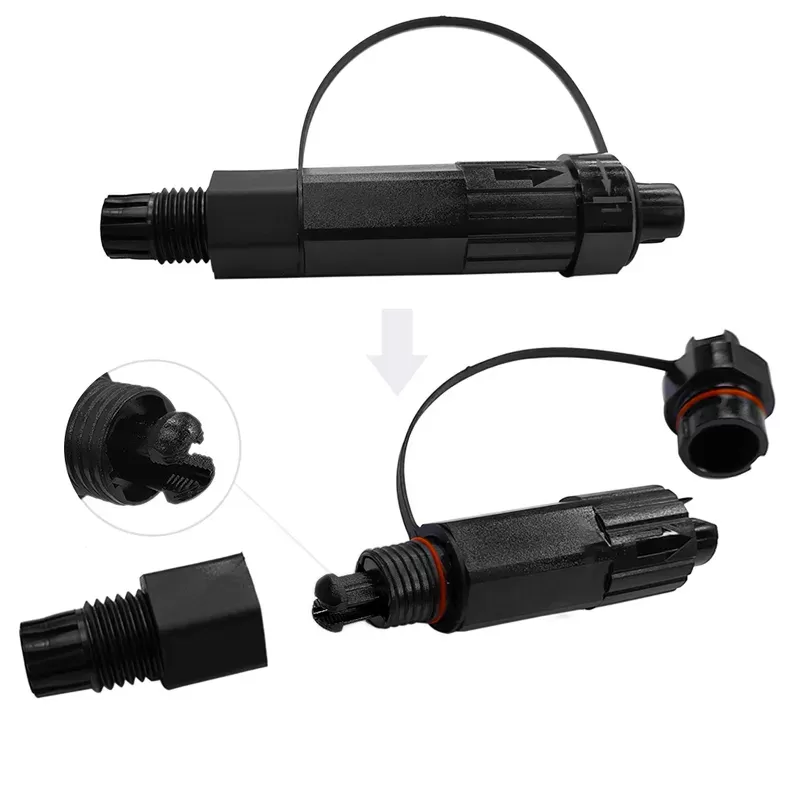

How to assembly mini SC/APC waterproof connector for round cable?

Description

        Field assembly optical reinforced adapter provide an cost effective, easy, environmental seal and mechanical protection for 1 fibers simplex SC style connections. Inside cover can protect ferrule end face far away scratch when mating with receptacle; Special fool-proofing design equal to SC/APC connector has blind-mating function; One hand Bayonet-style mechanical latch. The assemblies guarantee an easy, one-step connection system with the combined push-pull insertion and bayonet-style mechanical latch. It provides quick installation solutions and has good performance on mating receptacle / Adapter.

       Cable can be armoured or non-amoured. The industrial panel-mount, plastic adapters serve as a sealed feed-through for the fiber connection. The new industrial integrated flange-mount adapters are designed for tight, side-by-side applications.

Features

* Height of attenuation.

* Low insertion loss and added loss.

* ROHS and REACH materials compliant.

* IP68 water, dust proof and corrosion resistant

* Cost effective solution for in house termination.

* Mechanical performance: IEC 61754-4 standard.

* Cable diameter Range:FTTH Drop cable Round cable 3.0mm/4.0mm.

Application

* FTTA BBU RRU

* Harsh Environment

* Data Video Transmission

* FTTH & Outdoor Fiber Terminal End

* Optical Fiber Access Of Mobile Base Station

* Telecom networks 5G tower;
* CATV, LAN&WAN.
* Broadband;
* CPRI, FTTP, FTTA

Operation instructions
